HD Analog Security Camera
Full HD 1080P Bullet Outdoor Security Camera (Quadbrid 4-in1 HD-CVI/TVI/AHD/Analog)
Fotop 5MP HD Analog Security cam supports AHD/TVI/CVI/CVBS video output (default AHD)
Description
Tech Spec:
| Model NO: | FV-AHD-BF815 |
|---|---|
| Camera | |
| Image CMOS Sensor | 1/3.0" CMOS |
| Resolution | 3.0MP / 5.0MP/8MP optional |
| Effective Pixels | 2048(H)*1536(V) |
| Electronic Shutter | PAL: 1/50~1/100,000 Sec NTSC: 1/60~1/100,000 Sec |
| Day/Night | Color/ B&W (IR-CUT ) |
| AGC | Auto |
| AWB | Auto |
| Sync System | Internal |
| S/N Ratio | >58db |
| IR LED | 4pcs LED |
| IR Distance | 25m |
| Lens | |
| Focal Length | 4.0mm /2.8mm lens optinal |
| Focus Control | Fixed |
| Auto Iris Support | N/A |
| Power Supply | DC12±10% |
| Power Consumption | <5W |
| Housing | Al-Alloy Case, White Color Housing |
| Working Temperature | -10ºC~50ºC |
| Operational Humidity | Within 90%RH |
| Weatherproof Std. | IP66 |

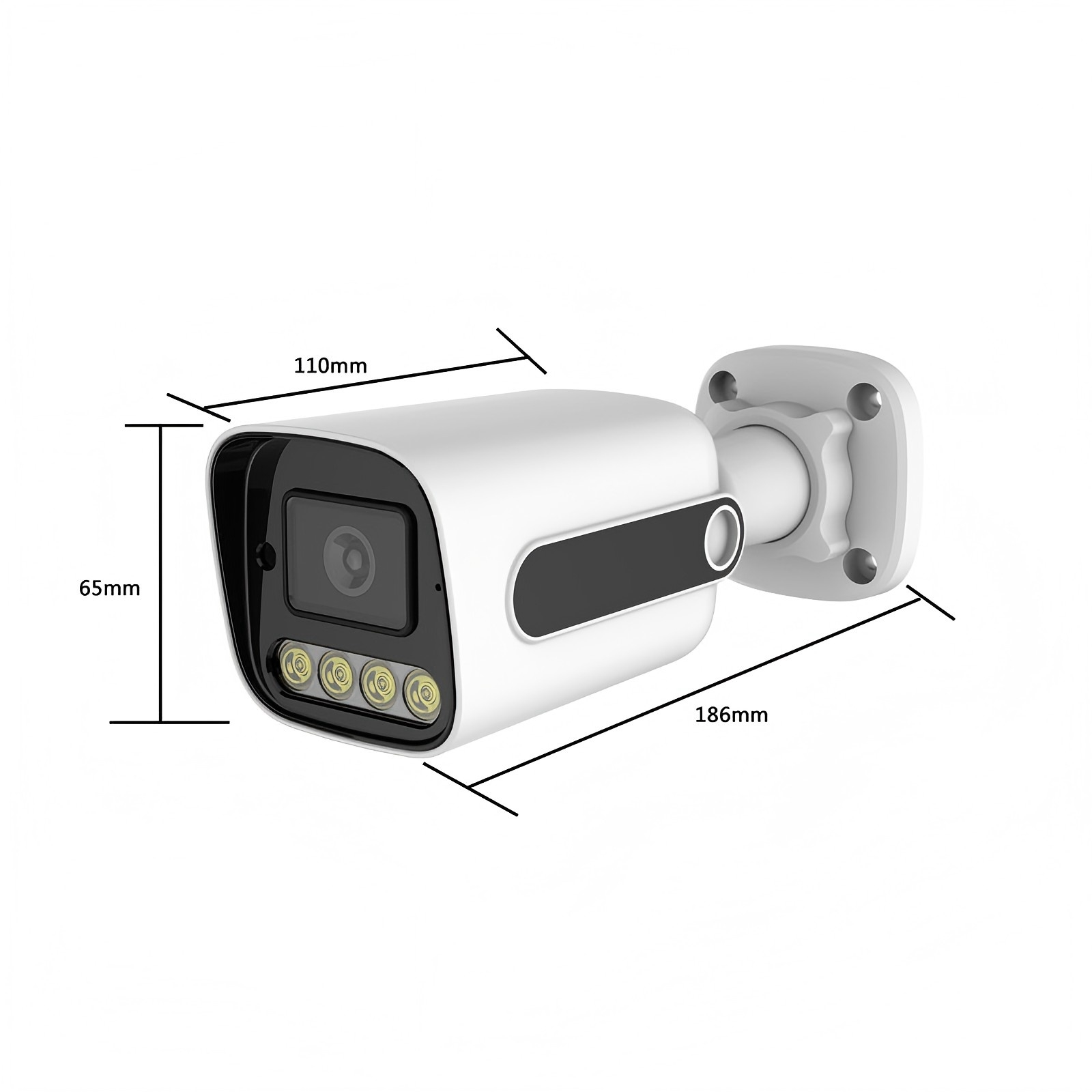

| Dimension | 185*110*110mm |
| Weight | 0.48kg |
Additional information
| Lens | 2.8/4mm |
|---|---|
| Pixiel | 2/3/5/8mp |
| Type | Metal Bullet |
| Power | DC12V2A,POE |
| Scenario | Outdoor |
