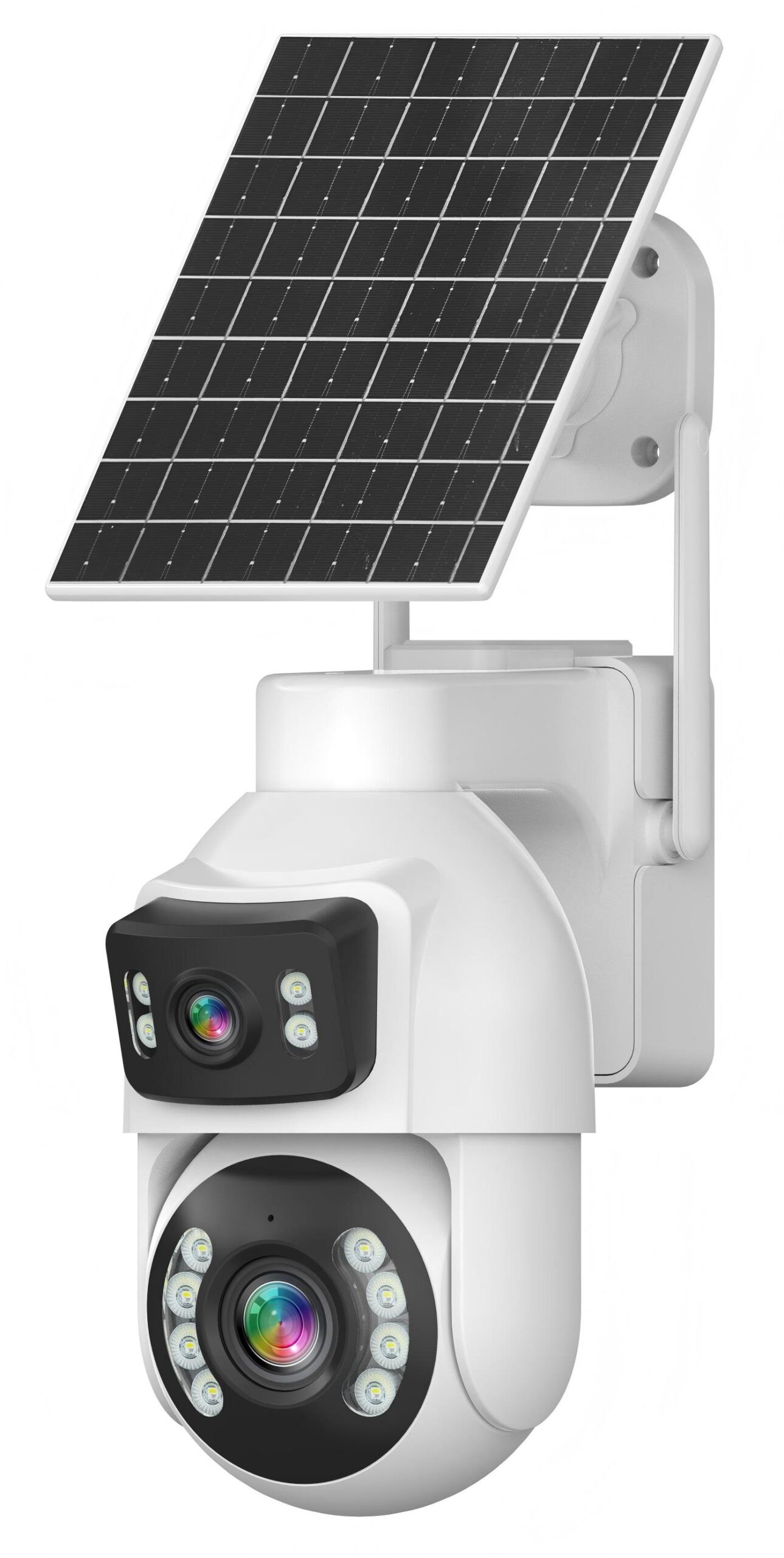

Solar 4G AOV 16X ZOOM PTZ Cam
FV-HD301 4MP Dual Lens Outdoor Solar Powered AOV 12/ 16X Optical Zoom PTZ 4G Surveillance Camera
1. 2K dual-lens dual-screen 4G solar-powered battery PTZ camera
2. Pan&Tilt:Pan 355 degree&Tilt 100 degree
3. 8-watt X2 solar panel with 1.3m extension cord,
4. built-in 24000mAh batteries
5. Two-way voice intercom
6. Cloud storage and TF card storage maximum 256 GB
7. Motion Detection
8. 12/16X Optical Zoom
Description
| Camera | |
|---|---|
| Image Sensor | CMOS 3MP |
| Solution | Hi3516CRNCV610 |
| Mini Illumination | Day: 1Lux; Night: 0.01 Lux |
| Digital Noise Reduction | 2D and 3D DNR |
| Stinking Settings | OFF/50HZ/60HZ |
| Network Standard | 4G LTE |
| 4G Frequency Band(Asia) | LTE-FDD：B1/B3/B5/B8 LTE-TDD：B34/B38/B39/B40/B41 |
| 4G Frequency Band(EU) | LTE-FDD：B1/B3/B5/B7/B8/B20/B28 |
| Operating Mode | Electricity Model, Performance Mode, Custom Mode |
| Lens | |
| Lens Focal Length | Fixed Camera: 4mm±5%;Speed Dome: 12X/16X optical zoom |
| Aperture | Fixed Camera: F2.0(4mm);Speed Dome: F 1.8~F2.5 |
| Field of View | Fixed Camera: Diagonal 108.5° Horizontal: 90.3° Vertical: 47.8° |
| Speed Dome: | |
| Wide--Diagonal 53.9° Horizontal: 44.3° Vertical: 33.9° | |
| Tele--Diagonal: 9° Horizontal: 7.8° Vertical: 5.88° | |
| Video | |
| Streaming | Main streaming, sub-streaming |
| Image Output | 1920*1080p(2MP) |
| Battery Power Display | Support |
| Audio | |
| Two-way Audio | Support |
| Microphone | Built-in |
| Speaker | Built-in |
| Storage | |
| Storage | TF card (max 256G); Support 4X fast forward playback |
| Port | |
| 4G Port | 4G antenna interface |
| Factory Data Reset | Support |
| Intelligent Function | |
| Alarm | Intelligent human tracking, motion detection, line crossing alarm |
| Detection Distance | Up to 40 meters |
| Accuracy | AI algorithm, accuracy rate up to 99.9% |
| Remote Control | |
| APP | APP: HiEasy |
| Language | Simplified Chinese/Traditional Chinese/English/Finnish/Korean/ French/ Portuguese/Thai/Spanish/Polish/Indonesian/German/Italian/Russian/Japanese/ Vietnamese/Arabic/Turkish |
| Light | |
| Light Mode | IR Night Vision/ Intelligent Night Vision/ Full Color Night Vision |
| White Light Distance | Up to 50m |
| LEDS | Speed Dome: 4pcs IR LED+4PCS Dual Wick LED+2pcs Laser LED |
| PTZ Control | |
| Rotation Range | Pan：0- 270º Tilt：0- 90 º |
| Rotation Speed | Pan：20°/s Tilt：0~10°/s |
| General | |
| Power Supply | 5V battery power supply, solar charging; support charger power supply |

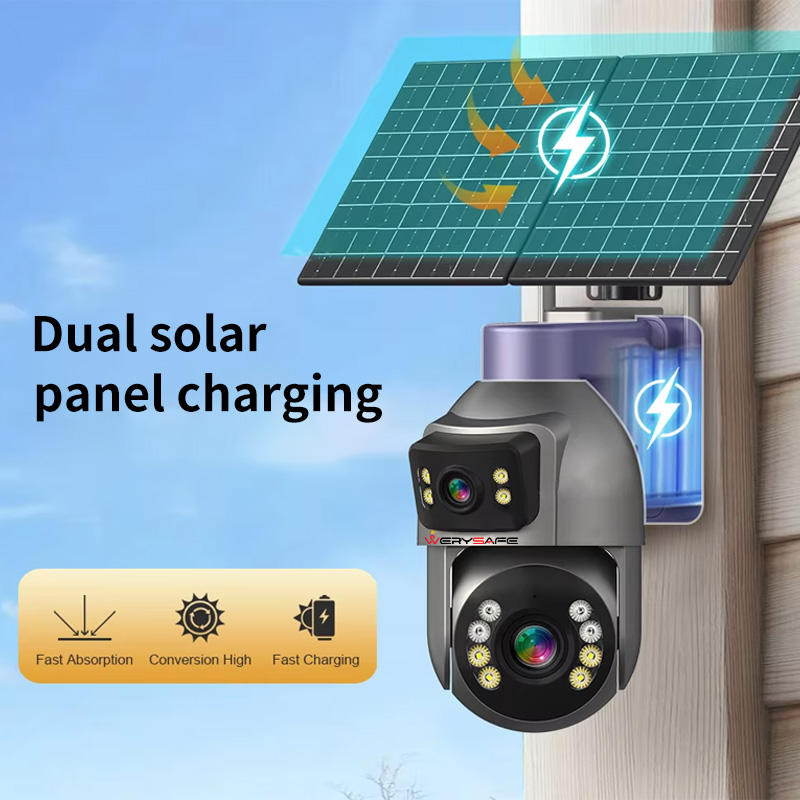

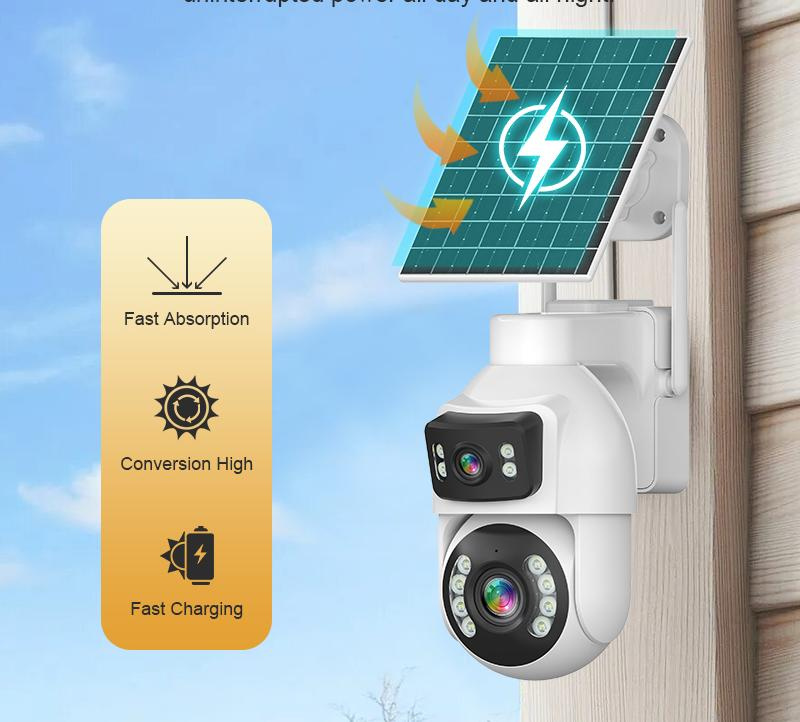

| Solar Panel | 8W*2; Output voltage 5V |
| Power Connector | TYPE-C |
| Battery Capacity | 4 group 21700 battery |
| Operating Conditions | -20℃ ~ 50℃; humidity less than 95% |
| Factory Data Reset | Support |
| Material | ABS white |

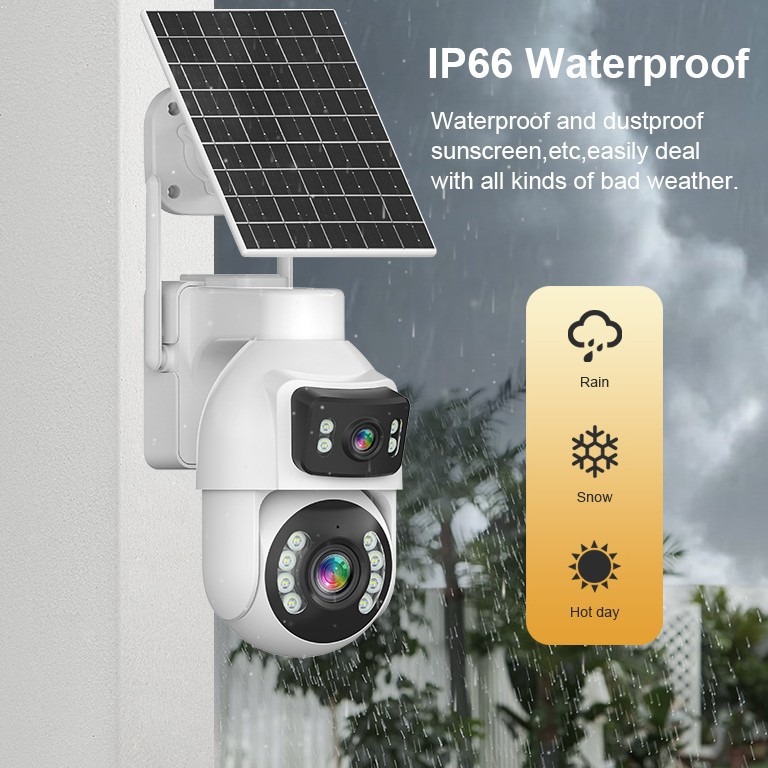

| Weather Proof Rating | IP66 |
| Dimension | Product：111*184*206mm |
| Weight | Product(N.W.): 1.01KG |
Additional information
| Lens | Fixed +20X Zoom Lens |
|---|---|
| Pixiel | 2MP+2MP |
| Type | PTZ |
| Power | Solar,battery,DC12V2A |
| Scenario | Outdoor |
